Product Overview

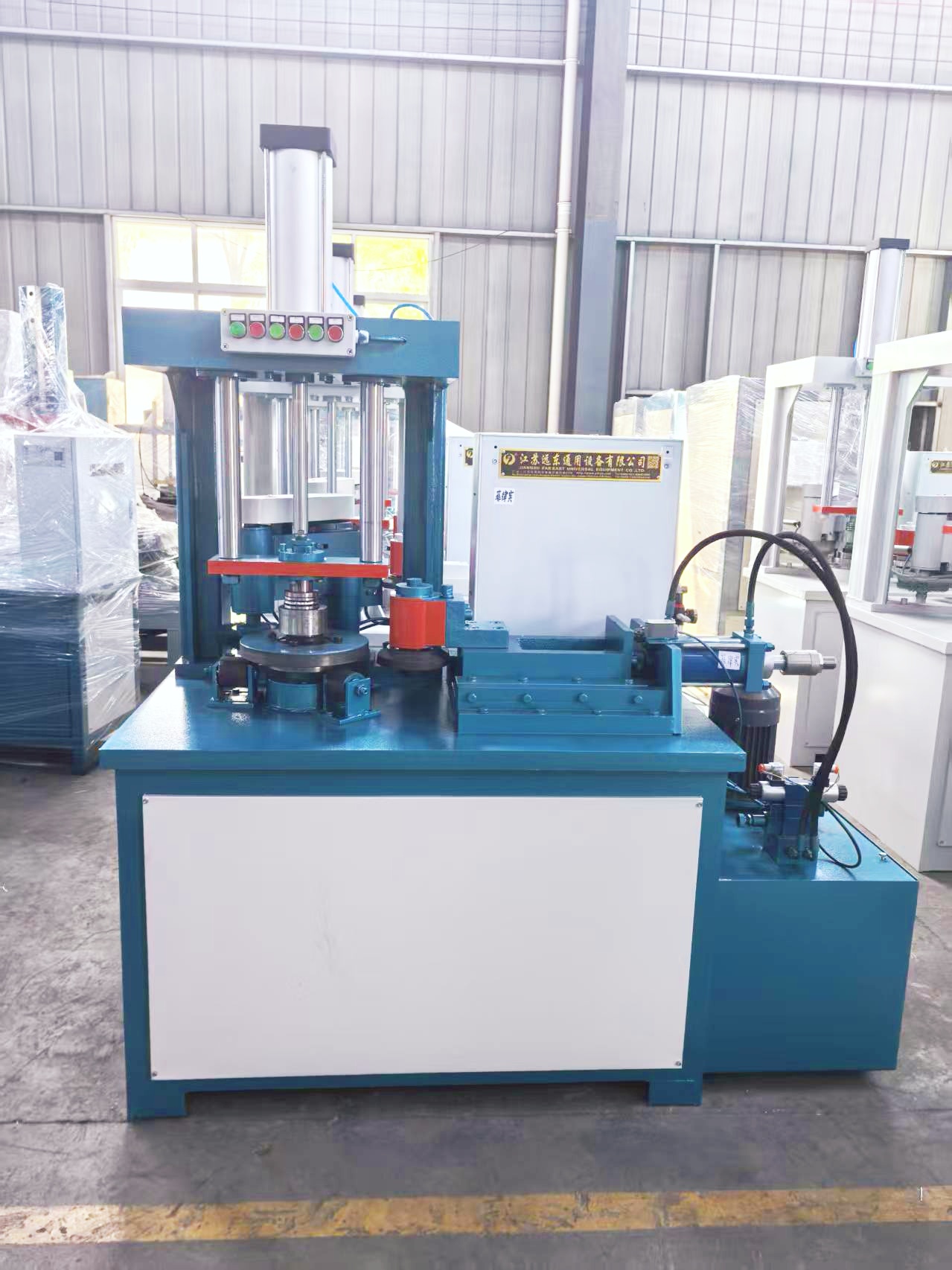

This equipment is a vertical semi-automatic dedicated device specially designed for the processing of the end heads of liquefied petroleum gas cylinders. It adopts the "manual feeding + automatic processing" mode and achieves stable and efficient precision processing of the end face of the end head through a vertical structure design. While ensuring processing accuracy, it features a small footprint and easy operation.

Core functional features

1.Vertical structure design

The vertical processing mode ensures the uniform distribution of cutting force

The floor space is reduced by 40% compared with the horizontal model

2. Semi-automatic processing flow

After the head is placed manually, the entire process of positioning and clamping → cutting processing → releasing the clamp is automatically completed

The processing cycle of the standard head (Φ325mm) is ≤20 seconds

3. Precision processing system

It adopts a high-rigidity spindle with radial runout ≤0.03mm

After processing, the flatness of the port is ≤0.1mm and the verticality is ≤0.15mm

4. Economical and practical configuration

It is equipped with a standard mechanical adjustment mechanism, making it convenient to switch specifications

Integrated cutting fluid circulation system to extend tool life

Main technical parameters

Main   technical parameter

1.

Motor power

5.5kw

2.

Air pressure

0.6Mpa

3.

Dish end trimming time

20s（adjustable）

4.

Dish end diameter

180-400mm

5.

Dish end height

120-300mm

6.

Thickness

≤3.5mm

7.

Weight

1.5T



Customized service

Personalized solutions can be provided based on customer demands. Specific parameters and functions can be adjusted according to the actual equipment configuration to meet the process requirements of different customers.
