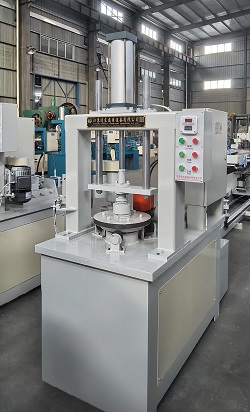

This equipment is a highly efficient and automated device specially designed for the processing and cleaning of the cap of liquefied petroleum gas (LPG) cylinders. It integrates the functions of cap forming and cleaning, and is suitable for the manufacturing and regular inspection processes of cylinders to ensure that the processing accuracy and cleanliness of the cylinder caps meet safety standards.
Equipment Characteristics
1.Integrated design
Integrate the functions of necking forming and cleaning to reduce process conversion time and improve production efficiency.
The modular structure is convenient for maintenance and component replacement.
- High-precision processing
Mechanical control is adopted to precisely control the feed rate of the necking die to ensure that the necking size of the head complies with the requirements of standards such as GB/T 5842.
The parameters are adjustable (such as necking pressure, cleaning time, etc.), and the adaptive fixture is compatible with various specifications of gas cylinders (such as 15kg, 50kg, etc.).
- Efficient cleaning system

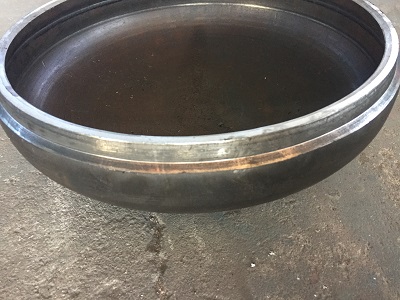

It is equipped with a rotating wire brush head to automatically remove residual metal debris, oxide scale and other impurities after the mouth is compressed, preventing contamination of the interior of the bottle.
An optional dust collection device is available to achieve dust-free operation.
Technical parameters
- Applicable cylinder diameter: Φ150-1200mm (customizable)
- The thickness of the steel cylinder plate used: 1-10mm
- Necking speed: 10-30 seconds per piece
- Cleaning efficiency: ≥99% residue removal rate
- Power supply: 380V/50Hz
- Motor power: 4.5-11KW
- Air source pressure: 0.6-0.8MPa
Application scenarios

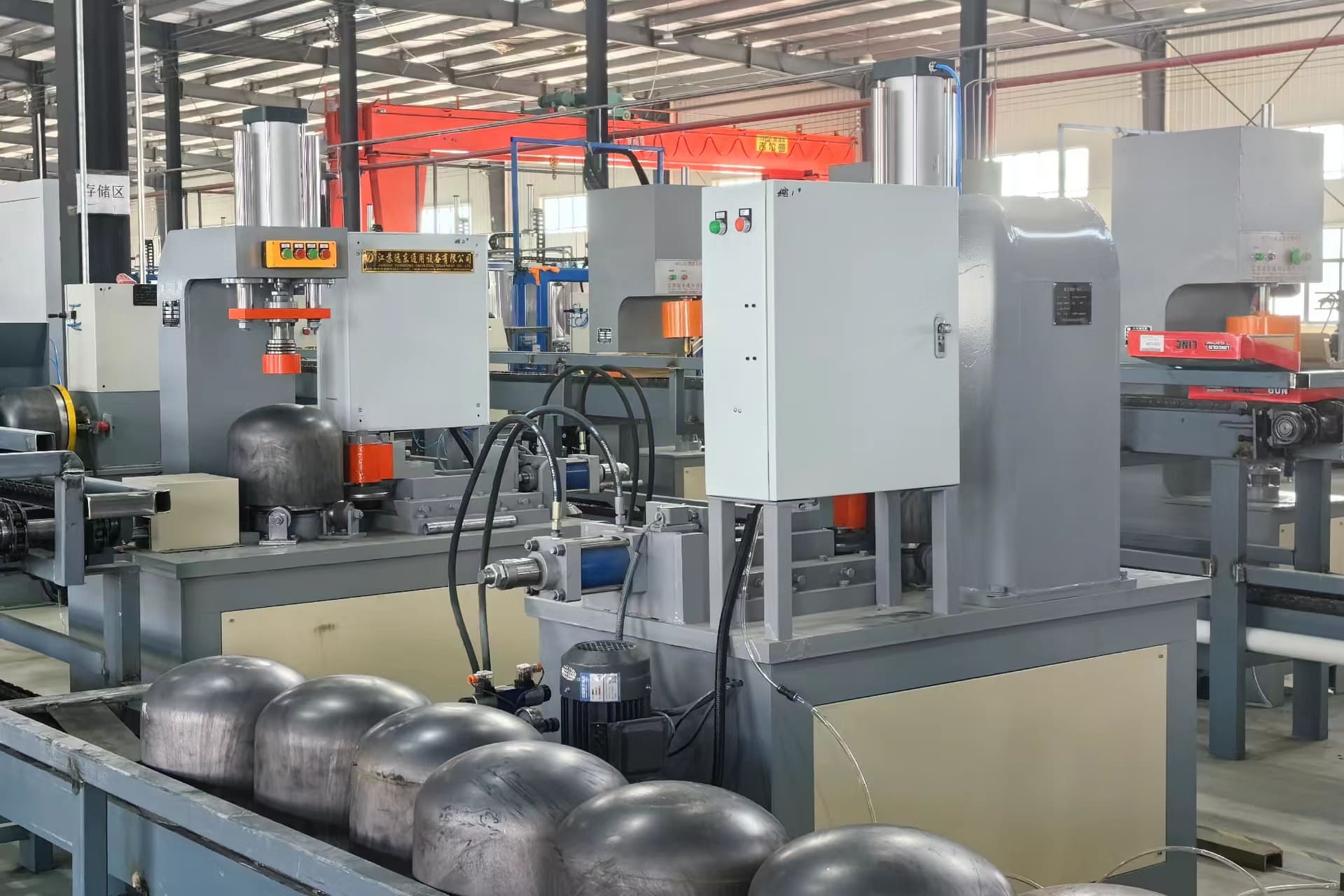

- Cylinder manufacturing plant: Used for shrinking and cleaning the heads of new cylinders.
- Inspection station: Repair of the constricted mouth during the refurbishment process of scrapped gas cylinders.
Customized service
Personalized solutions can be provided based on customer demands. Specific parameters and functions can be adjusted according to the actual equipment configuration to meet the process requirements of different customers.
