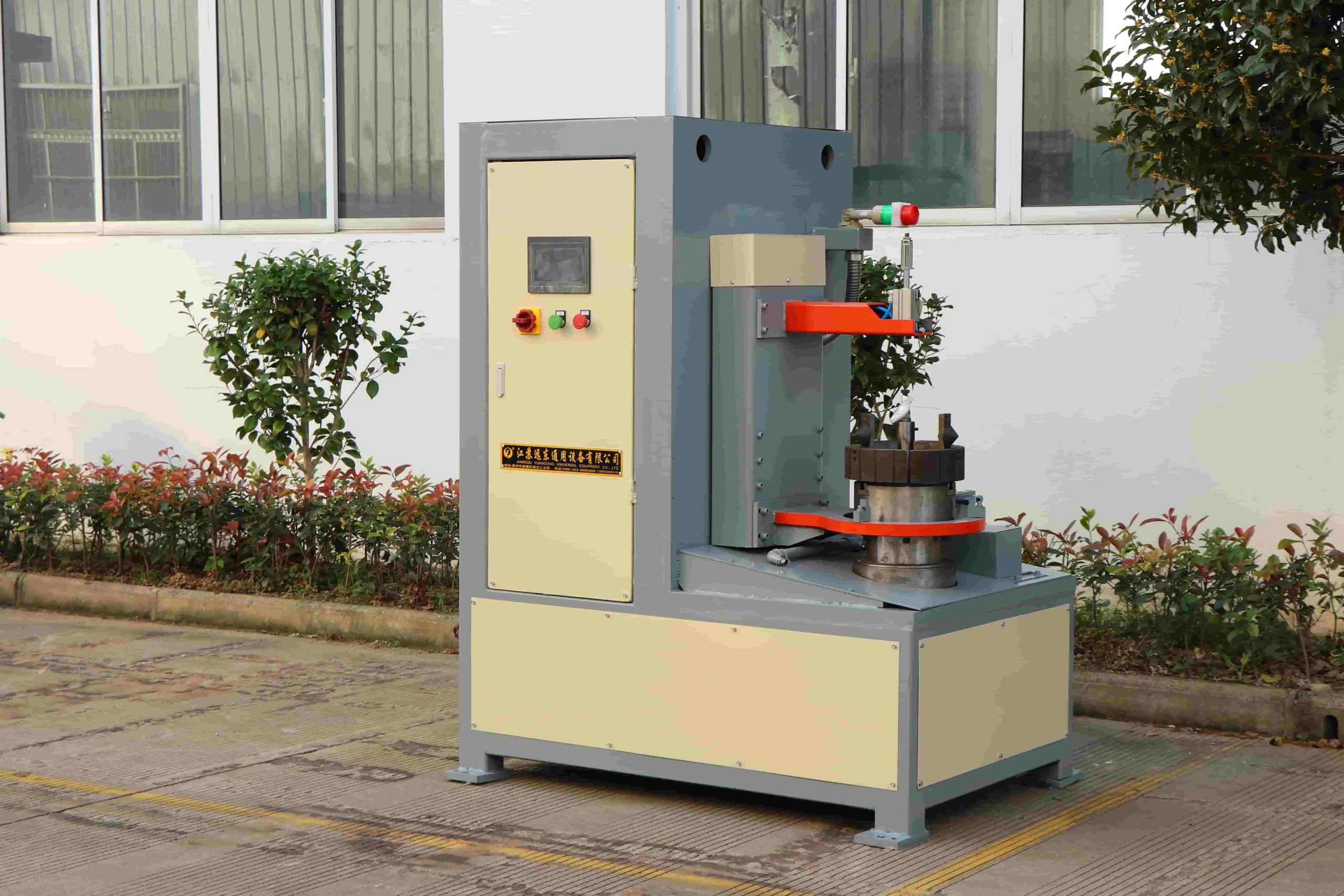

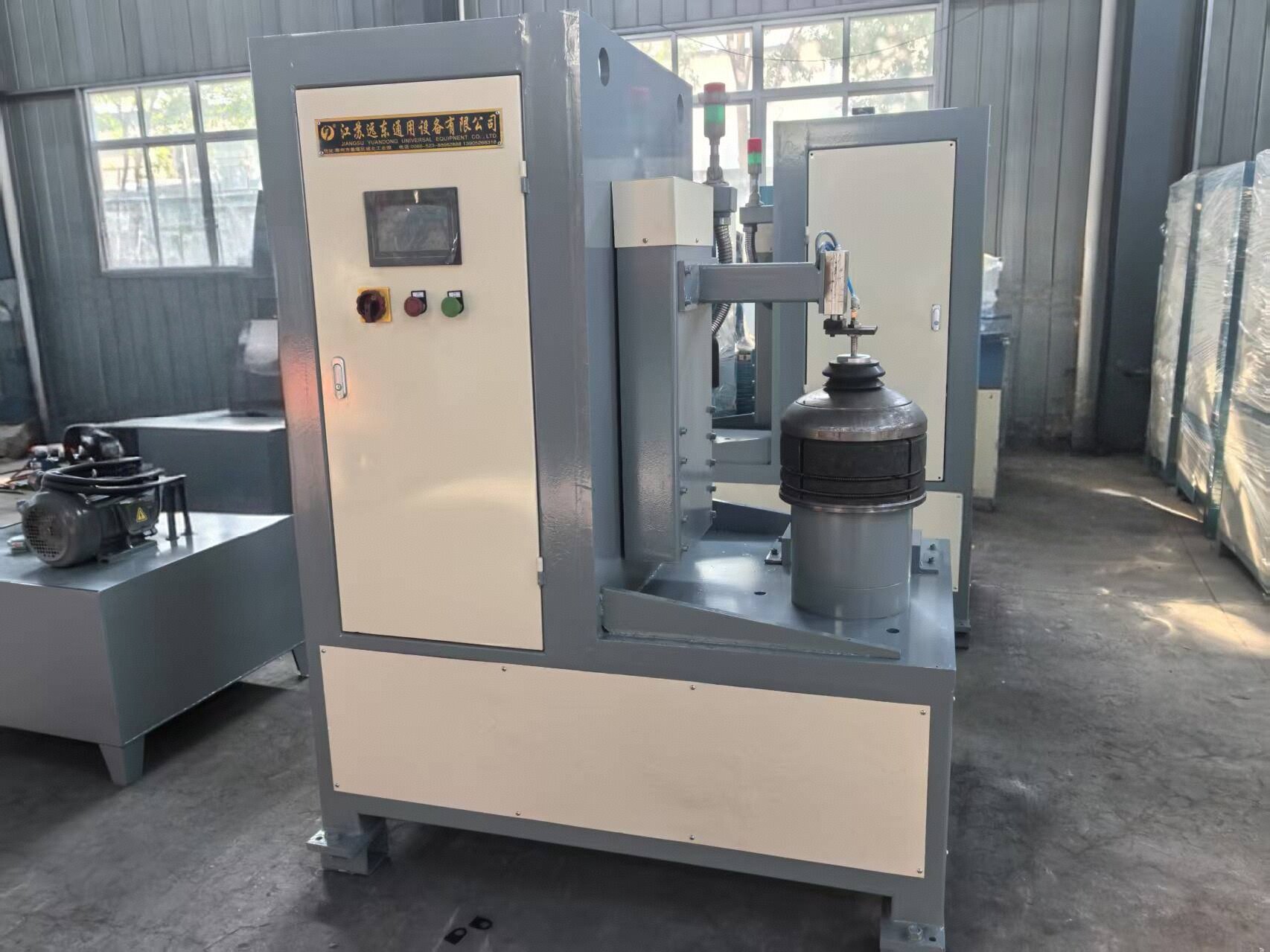

This equipment is specially designed for the precise processing of the bottle mouth of liquefied petroleum gas (LPG) cylinders. It adopts advanced CNC numerical control technology and vertical turning tool structure to achieve efficient and high-precision flat cutting and chamfering processing of the bottle mouth, and is suitable for batch automated operations in the cylinder production line.
Core characteristics
1.High-precision numerical control system
Equipped with a multi-axis linkage CNC control system, it supports custom programming and can adapt to the processing requirements of cylinder mouths of different specifications (such as 15kg, 50kg, etc.), with an accuracy of ±0.05mm.
The touch screen human-machine interface enables one-click parameter setting and is easy to operate.
2.Design of Vertical Turning Tool Special Machine
It adopts a rigid vertical spindle structure and is equipped with high-strength alloy turning tools to ensure a stable cutting process and avoid burrs or deformation at the bottle mouth.
The automatic tool setting function enables quick positioning of the bottle mouth center, enhancing processing efficiency.
3.Automated integration

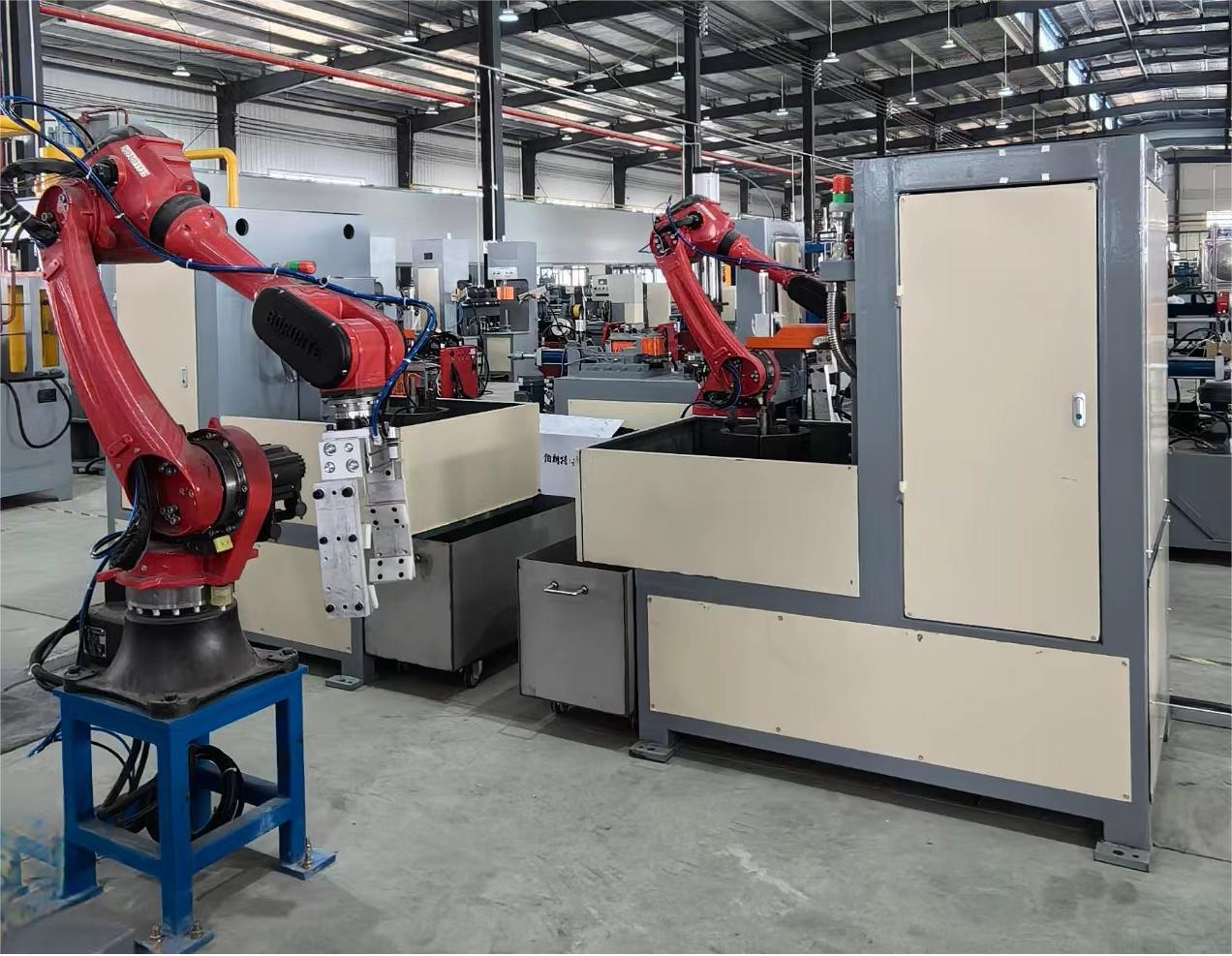

Compatible with the automated loading and unloading system (optional mechanical hand or conveyor belt), it enables unmanned continuous production, with a single-piece processing cycle of no more than 30 seconds.
It is equipped with an internal pneumatic clamping device, suitable for various cylinder diameters, and the clamping force is adjustable to ensure processing safety.
4.Safety and Environmental Protection
It is equipped with a cutting fluid circulation system and a debris collection device, meeting industrial environmental protection standards
The emergency braking and overload protection functions ensure the safe operation of the equipment.
Typical applications

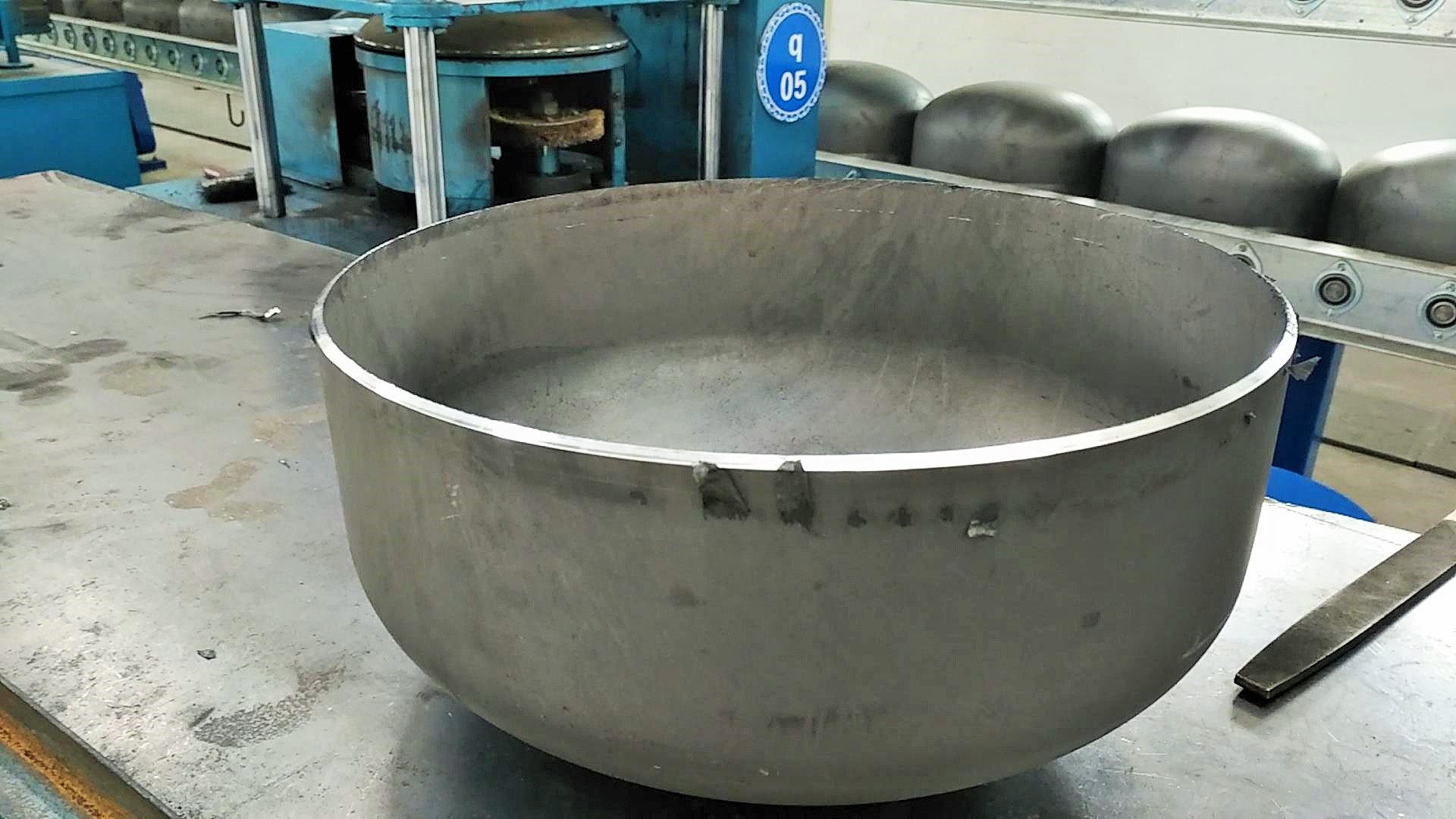

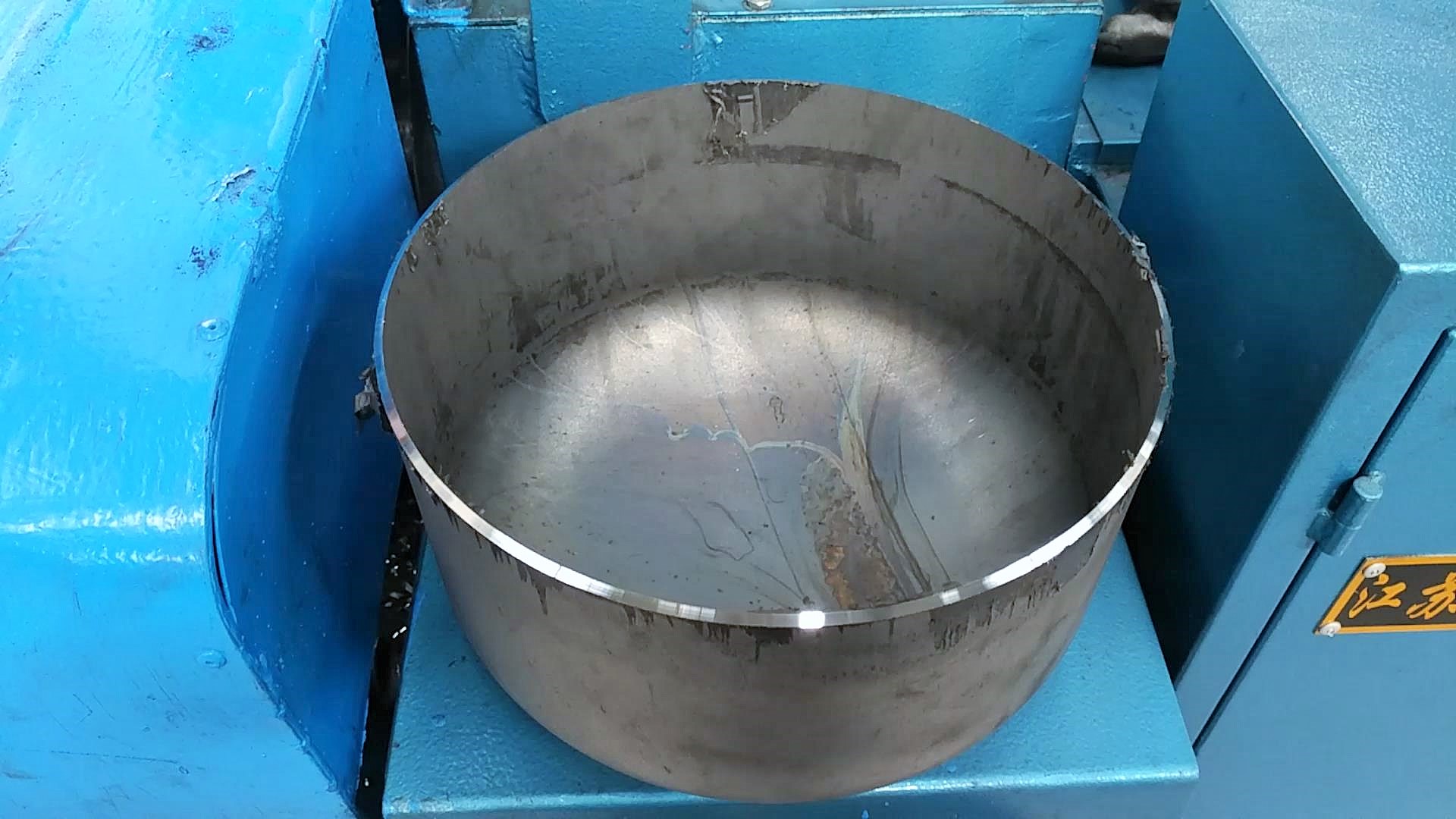

1.The processes such as bottle mouth turning, end face flattening, and inner and outer chamfering in the manufacturing of LPG cylinders.
2.Bottle mouth repair processing during the refurbishment of old bottles.
Technical parameters
1.Processing diameter range: Φ200-Φ500mm
2.Main shaft speed: 200-2000r/min (stepless speed regulation)
3.Motor power: 7.5kW (spindle)
4.Equipment weight: Approximately 1.5 tons
