Product Overview

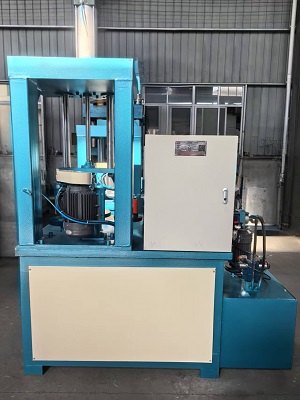

This equipment is a vertical semi-automatic dedicated device specially designed for the processing of the end heads of liquefied petroleum gas cylinders. It adopts the “manual feeding + automatic processing” mode and achieves stable and efficient precision processing of the end face of the end head through a vertical structure design. While ensuring processing accuracy, it features a small footprint and easy operation.
Core functional features
Vertical structure design
The vertical processing mode ensures the uniform distribution of cutting force
The floor space is reduced by 40% compared with the horizontal model
2. Semi-automatic processing flow

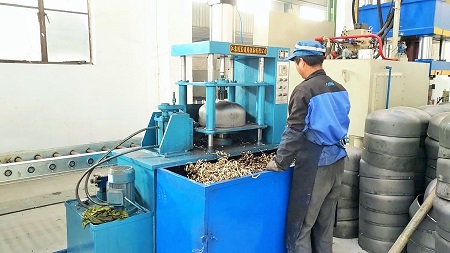

After the head is placed manually, the entire process of positioning and clamping → cutting processing → releasing the clamp is automatically completed
The processing cycle of the standard head (Φ325mm) is ≤20 seconds
3. Precision processing system
It adopts a high-rigidity spindle with radial runout ≤0.03mm

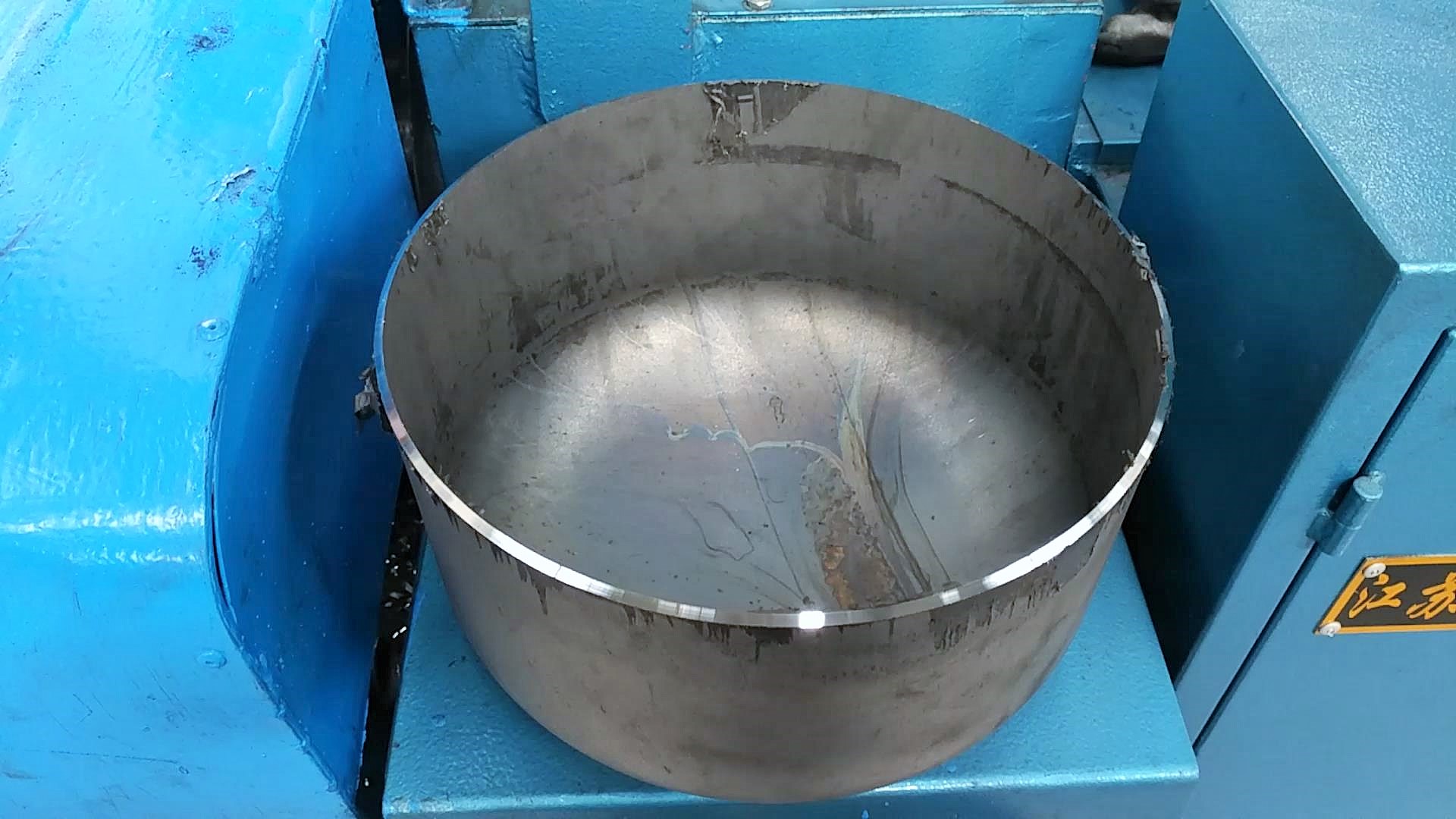

After processing, the flatness of the port is ≤0.1mm and the verticality is ≤0.15mm
4. Economical and practical configuration
It is equipped with a standard mechanical adjustment mechanism, making it convenient to switch specifications
Integrated cutting fluid circulation system to extend tool life
Main technical parameters
Project parameters
Processing range: Φ200-400mm
The thickness of the head is 2.5-6.0mm
Main shaft power: 5.5kW (380V/50Hz)
Workbench travel: 0-150mm (electrically adjustable)
The external dimensions of the equipment are 1500×800×1800mm
Customized service
Personalized solutions can be provided based on customer demands. Specific parameters and functions can be adjusted according to the actual equipment configuration to meet the process requirements of different customers.
