Product Overview

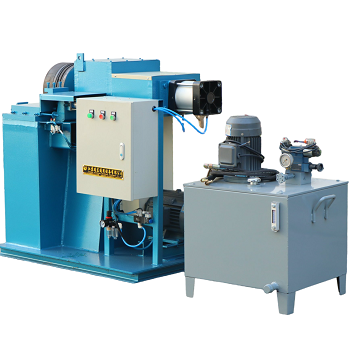

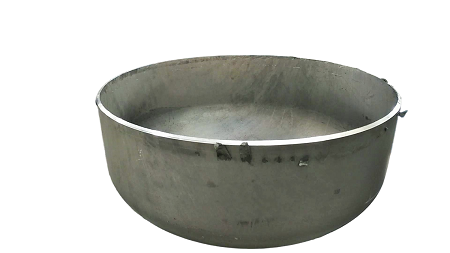

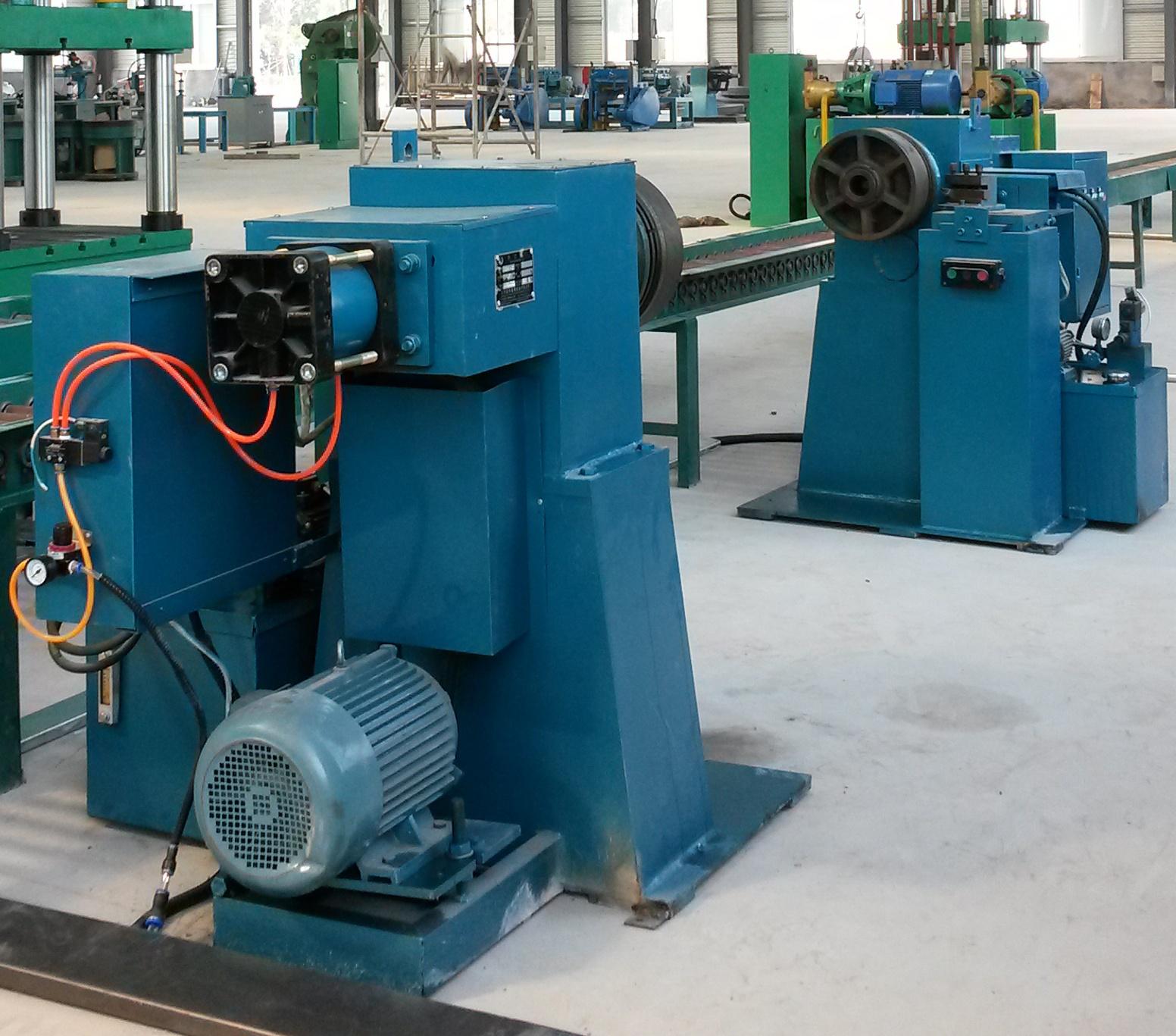

This equipment is a head and port processing device designed by liquefied gas cylinder manufacturing enterprises. It adopts a semi-automatic working mode of “manual feeding + automatic processing”, which significantly reduces the equipment investment cost while ensuring processing accuracy. The equipment completes the flattening processing of the end face of the head through a precision milling system, ensuring the welding quality of the head and the cylinder connection. It is a highly cost-effective solution for head processing.
Core functional features
Semi-automatic high-efficiency processing

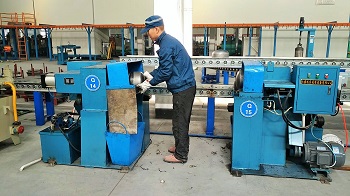

After the head is placed manually, the entire process of clamping, positioning and cutting is automatically completed
The processing cycle of a single piece is ≤20 seconds
- High-precision cutting system
Hard alloy tools are adopted, and the radial runout of the spindle is ≤0.02mm
The flatness of the processed port is ≤0.08mm and the verticality is ≤0.12mm
- Flexibility and adaptability
The adjustable fixture supports the processing of heads of various specifications ranging from Φ200 to 400mm
- Mechanical dial adjustment, specification switching time ≤3 minutes
- Economical and practical design
It saves 30% of equipment costs compared with fully automatic models
- Standard equipped with a chip collection device to keep the working environment clean
Basic technical parameters
Processing range: Φ200-400mm
The thickness of the head is 2.5-6.0mm
Main shaft power: 9kW (380V/50Hz)
Cutting feed rate 0.05-0.2mm/r (adjustable)
The weight of the equipment is approximately 850 kilograms
Customized service
Personalized solutions can be provided based on customer demands. Specific parameters and functions can be adjusted according to the actual equipment configuration to meet the process requirements of different customers.
