Product Overview

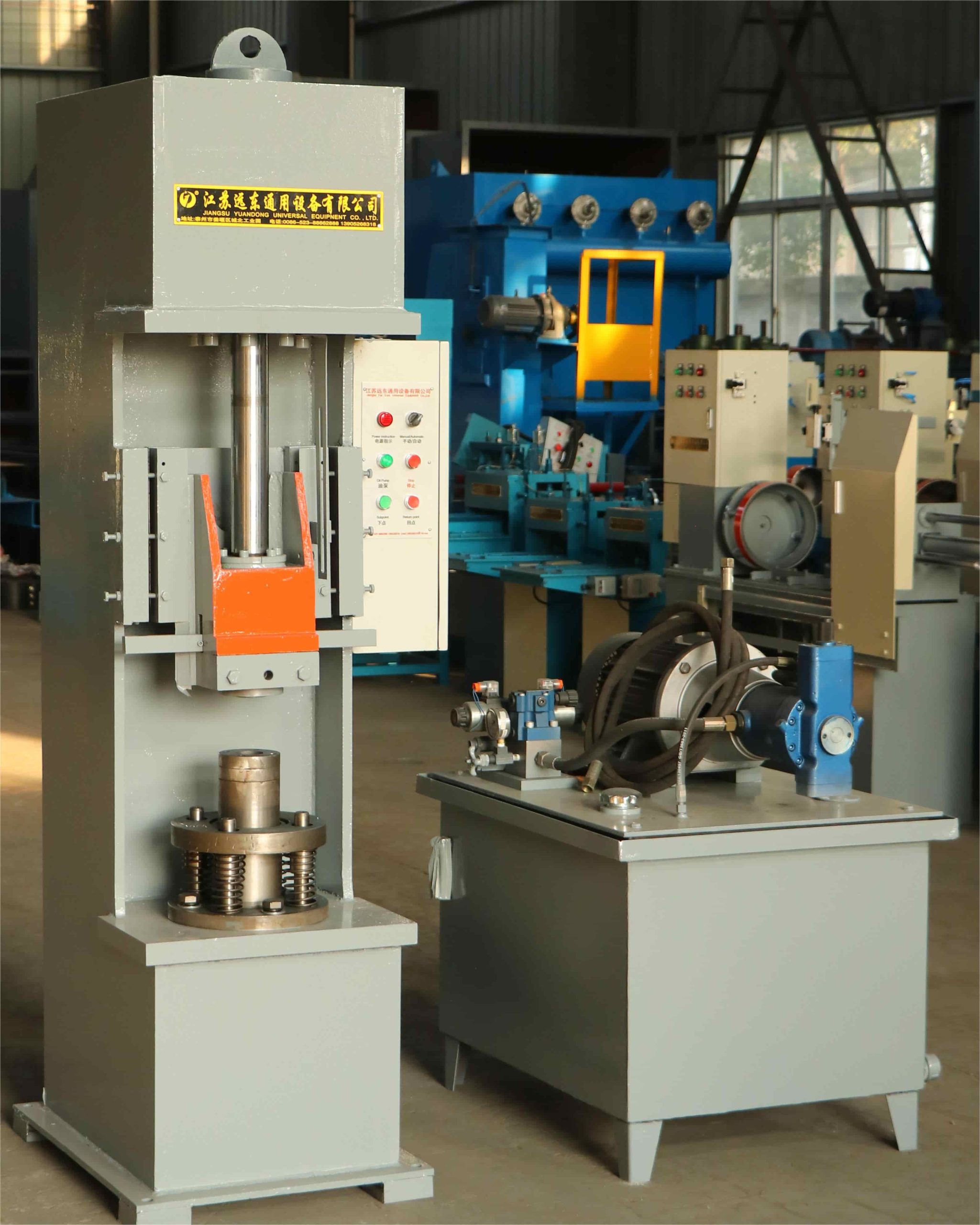

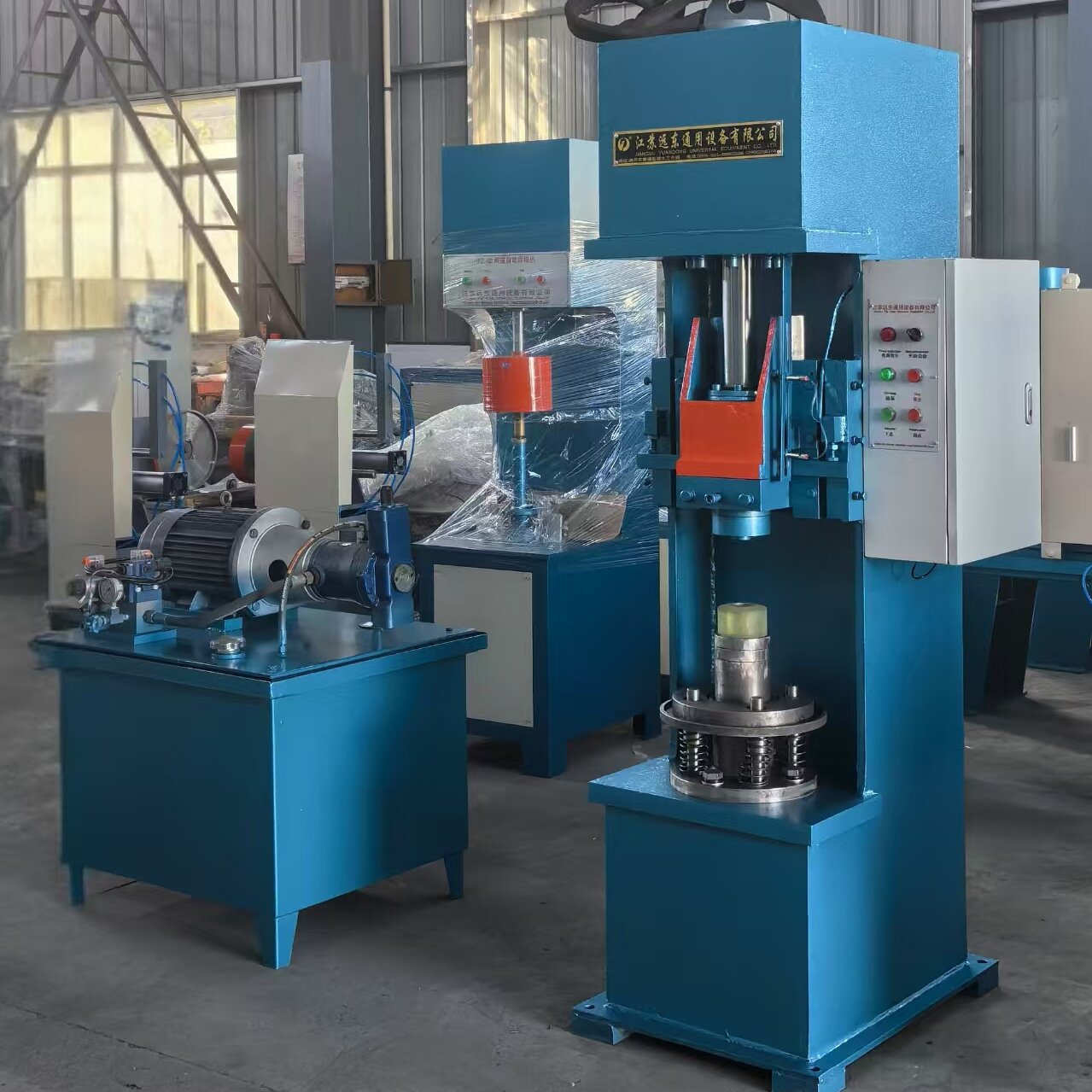

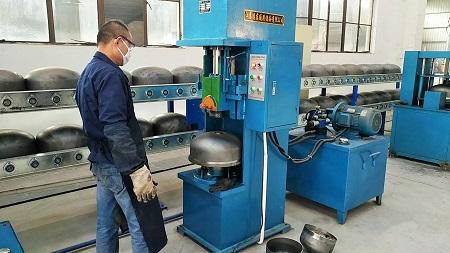

This equipment is a high-precision integrated punching and marking device specially designed for the heads of liquefied petroleum gas (LPG) cylinders. It adopts a hydraulic servo drive system and can complete the punching and marking pressing processes of the cylinder heads in one go, ensuring that the processing accuracy and efficiency meet the requirements of industry standards.
Core functions and features
- Dual-process integrated processing
The punching (Φ8-25mm) and steel stamp pressing operations are completed simultaneously
Machining accuracy ±0.05mm, position repeatability accuracy ±0.1mm
The processing cycle of a single piece is ≤20 seconds
- High stability design
The four-column guiding structure ensures smooth stamping
Imported hydraulic system, pressure fluctuation ≤1%

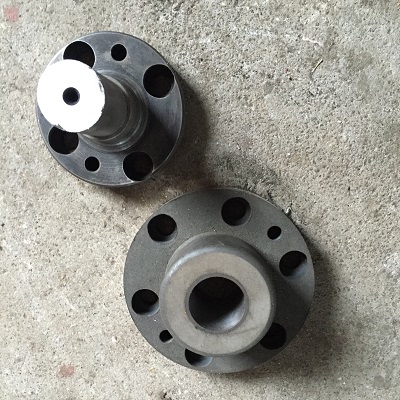

The mold is made of Cr12MoV alloy steel, with a heat treatment hardness of HRC58-62
- Safety protection system
Two-handed start button
Emergency stop device
Overload automatic protection function
Technical Parameter Table
Project technical indicators
Applicable head thickness: 2.5-6.0mm
The maximum punching diameter is Φ25mm
The pressing depth of the sign is 0.3-1.2mm(adjustable)
Working pressure: 16-25T(adjustable)
The power supply requirement is 380V/50Hz/15kW
The size of the equipment is 2000×1500×2500mm
The equipment weighs approximately 2.5 tons
Application field

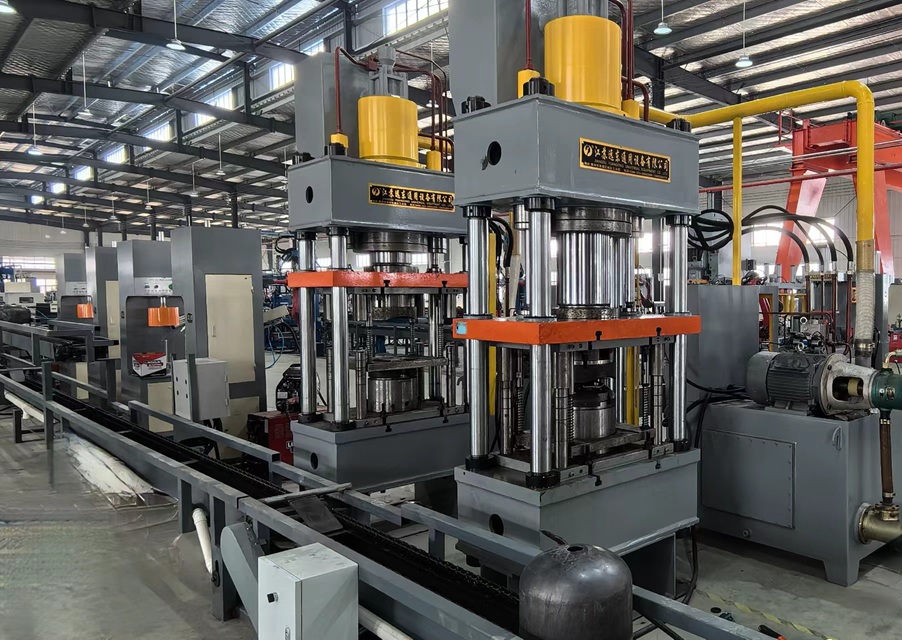

- LPG cylinder production line
- Pressure vessel manufacturing
- Gas Cylinder Inspection and Maintenance Center
Metal products stamping processing
Quality Assurance

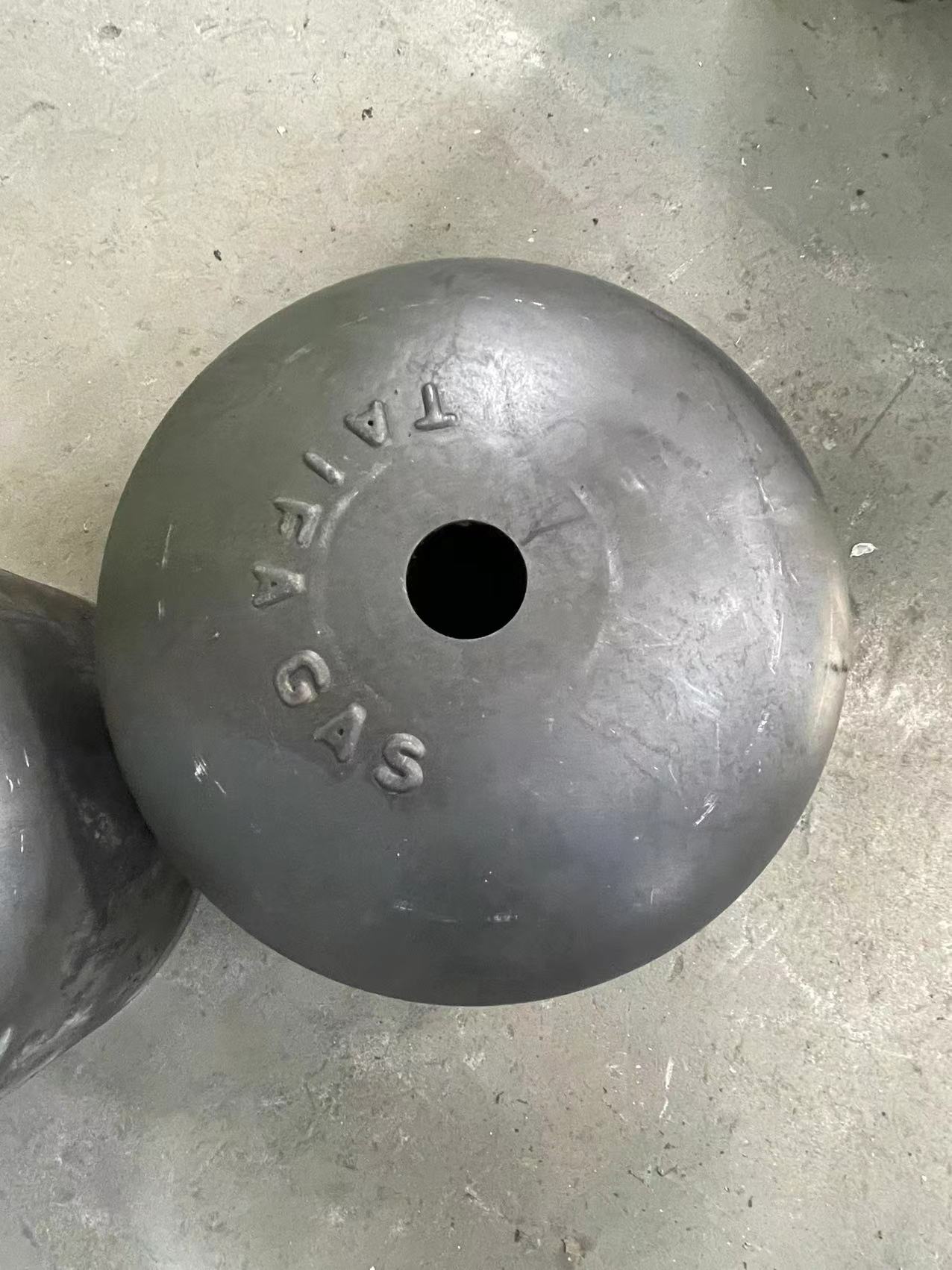

The punching is free of burrs and the edges are smooth
The logo is clear and distinguishable, with uniform depth
The equipment is guaranteed for 12 months
This equipment adopts a modular design, and the mold replacement is convenient, which can meet the processing requirements of gas cylinders of different specifications. Customized services are supported. The punching specifications and marking contents can be adjusted according to the customer’s requirements.
