LPG Cylinder Production Line

This production line is used for blanking of steel coil and cutting to round steel plate, using computer optimization design, with high mechanical strength, operating smoothly. Control parts adopt digital circuit, main components and parts:PLC, touch screen, servo motor etc. selected with international famous brand. Feeding length is controlled by servo motor, with high accuracy. Blanking die can realize double or three blanking. The material of die is Cr12Mov, processed by vacuum hardening. The whole production line is with high automation, stable operation, low failure rate, convenient maintenance. it’s the first choice of LPG cylinder manufacturing machines.

Personalized solutions can be provided based on customer demands. Specific parameters and functions can be adjusted according to the actual equipment configuration to meet the process requirements of different customers.

This machine composed of hydraulic power unit, mainframe, mold and electronic control parts. It can satisfy the requirements of different sizes products, compact structure, stable property. It can punch single hole or double holes. It has advantages of high punching speed, high work efficiency, accurate positioning, safe and reliable etc…One person can operate two sets machines, it’s the ideal machine for LPG cylinder manufacturing.

This machine adopts roller positioning, pneumatic compressing, hydraulic step less speed regulating, automatic feeding. to make the dish ends extrusion forming, accommodate to the requirements of different materials. The biggest advantage of this machine is that it can processing different diameter dish ends only on one machine. One person can operate two sets machines,it is the ideal machine for LPG cylinder manufacturing.

This machine is suitable for welding LPG cylinder valve base and dish end, use Lincoln MAG pulsed power supply, frequency converting control revolving speed. One key operating, welding joint sophisticated transition, no splash on two sides. Convenient and simple operation, welding condition can be adjusted flexibly, can proceed different welding condition. One person can operate two sets machines, it is the ideal machine for LPG cylinder manufacturing.

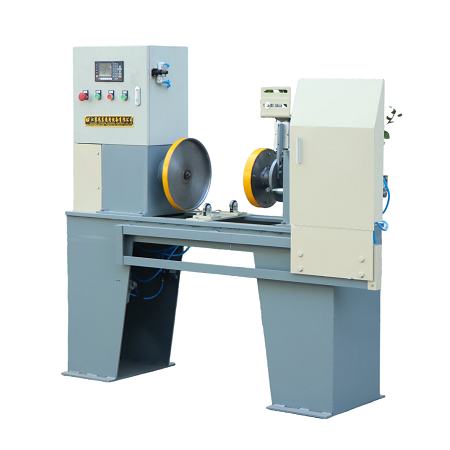

This machine welding and null string speed is controlled by frequency conversion or servo, to realize high and low speed switch. That welding torch start/stop arc linkage with slow/fast rotation, selected with Lincoln MAG pulsed power supply, to realize automatic handle welding. This machine welding speed is fast, welding seam forming is beautiful, no splash. The quality is stable and reliable. One person can operate two sets machines, it is the ideal machine for LPG cylinder manufacturing.

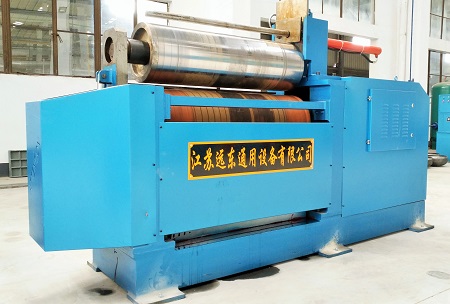

The equipment is specially used for 20~50KG cylinder cylinder winding by hydraulic station digital circuit control, imported PLC, touch screen, high precision roll and so on. Its operation is completed with one key, high degree of automation, high precision of winding, no different shape has the characteristics of smooth operation, automatic input and exit, safe and fast. It is the first choice for seam cylinder processing equipment.

Straight seam welding of LPG cylinder, this equipment is designed for 20~50KG cylinders and consists of Lincoln MAG pulse power supply and welding tooling. Adopt single-side welding double-sided forming technology, water-cooled configuration, welding one-key completion, good weld forming, no splash. It has the characteristics of smooth operation, convenient and fast access to materials, safe and fast, etc. It is the first choice for straight seam welding of welded cylinder.

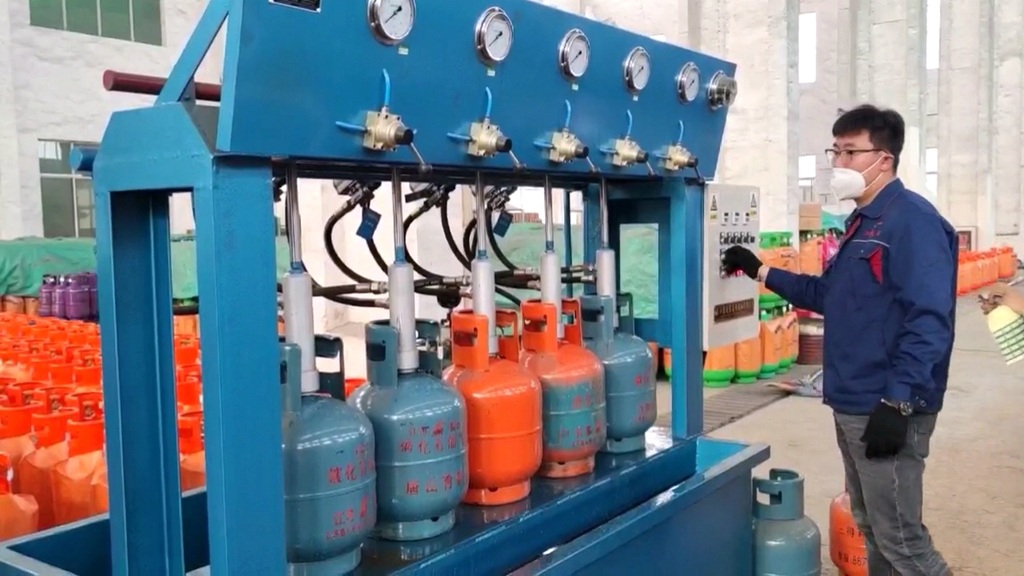

This equipment is a dedicated device for strength testing in the production of gas cylinders. It consists of a frame, a cylinder clamping device, a water tank, a booster pump, an electrical control cabinet, and other components. Bottles are manually loaded and unloaded, while water filling and emptying are automated. This machine features a high degree of automation, is easy to operate, safe and reliable, and is an essential choice for the production of small-sized gas cylinders. It integrates water filling, pressurization, pressure relief, and water drainage, with each station being independently controllable. Through automated water filling, pressurization, and pressure holding tests, it ensures that the gas cylinders meet national standards (such as GB/T 9251, ISO 10460, etc.) in terms of sealing and strength at the rated working pressure. It is suitable for batch testing of gas cylinders on production lines.

This machine is used for strength testing for LPG cylinder manufacturing. Composed of rack, feeding device, irrigation, pressure compression and pressure maintaining, drainage device, water tank, pressure cylinder, electric control parts of the machine adopt centralized control with cabinet control, stations can be selected. This machine is with high automation, convenient operation, safe and reliable. It is the necessary machines for LPG cylinder manufacturing.
